Description

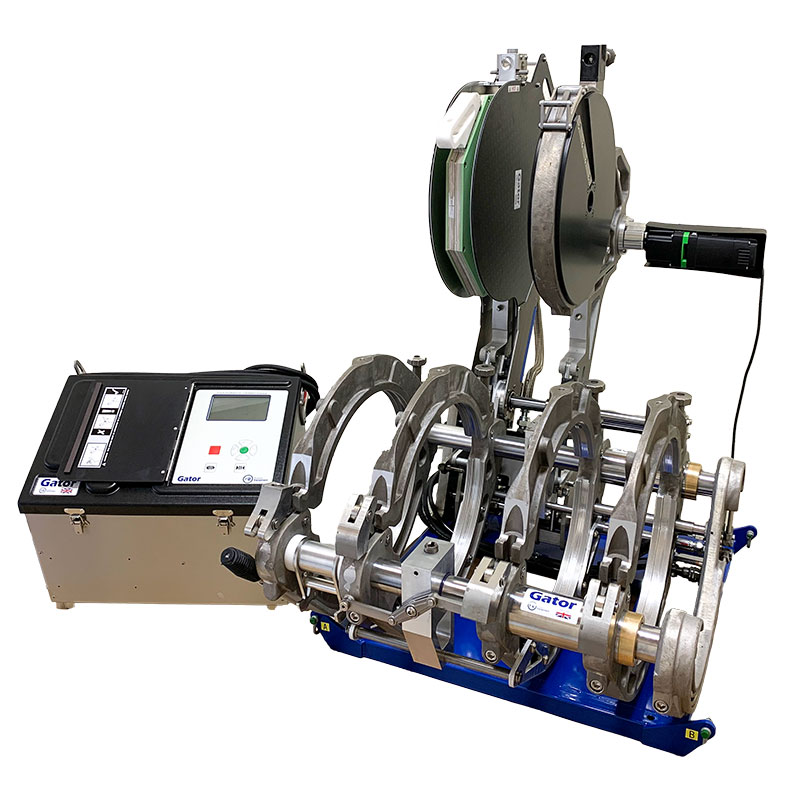

Based around the well established Gator 2 fully automatic butt fusion machine, the pipeliner further increases productivity by enabling a single operator to effortlessly load and eject the 400mm heater and trimmer.
Ideal for jobs where long pipe strings are to be made e.g. sub marine, fish cages, wind farms and other long distance pipeline projects. This third-generation design from the innovation award winning PL315 has been finely tuned working closely with customers to make an incredibly reliable easy to service machine as well as shedding 36.5kg from the previous model.
Features
- Pipe size range 250-500mm Ø
- “Constant heat” option available, keeping the heater plate hot for faster joint cycle times
- Heater and trimmer folds into the chassis making a very compact machine footprint
- User familiar standard G2 computer and hydraulic controller
- Many common parts with standard G2 machine means consumable spares such as seals are already stocked and servicing is straight forward
- Comes complete with lifting beam
Optional

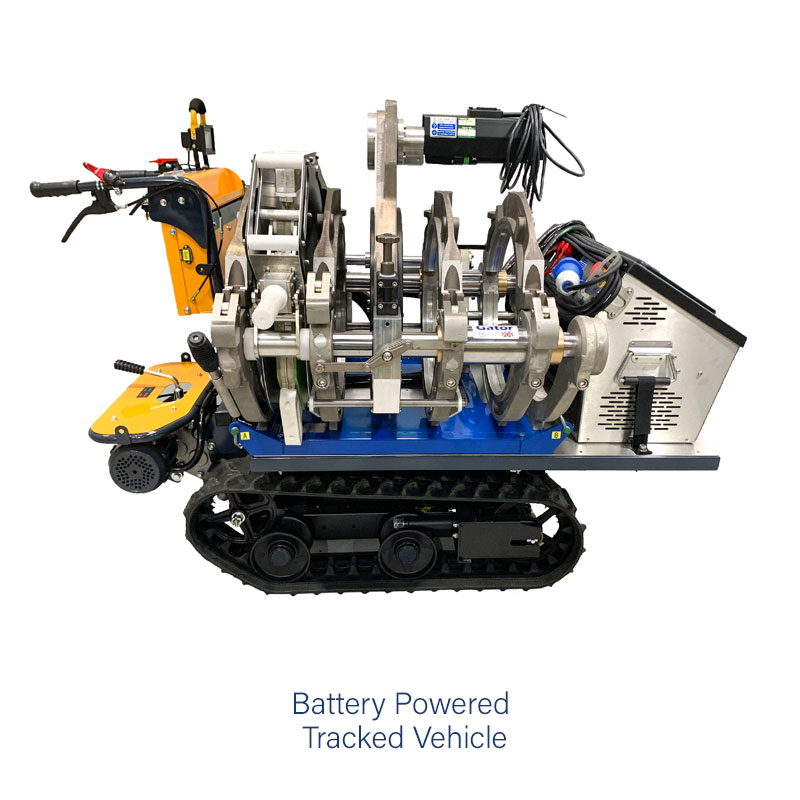

- Battery powered tracked vehicle (see Product Sheet)
- High-level fold flat pipe support rollers (see Product Sheet)

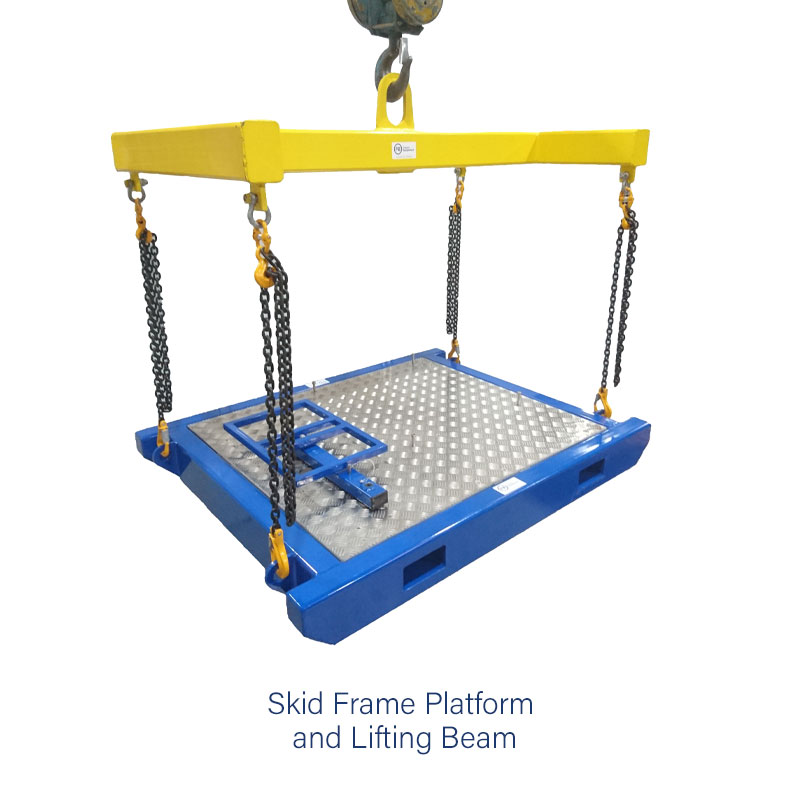

- Skid frame machine platform with fork lift pockets, swing out controller arm and optional extra lifting beam
