Description

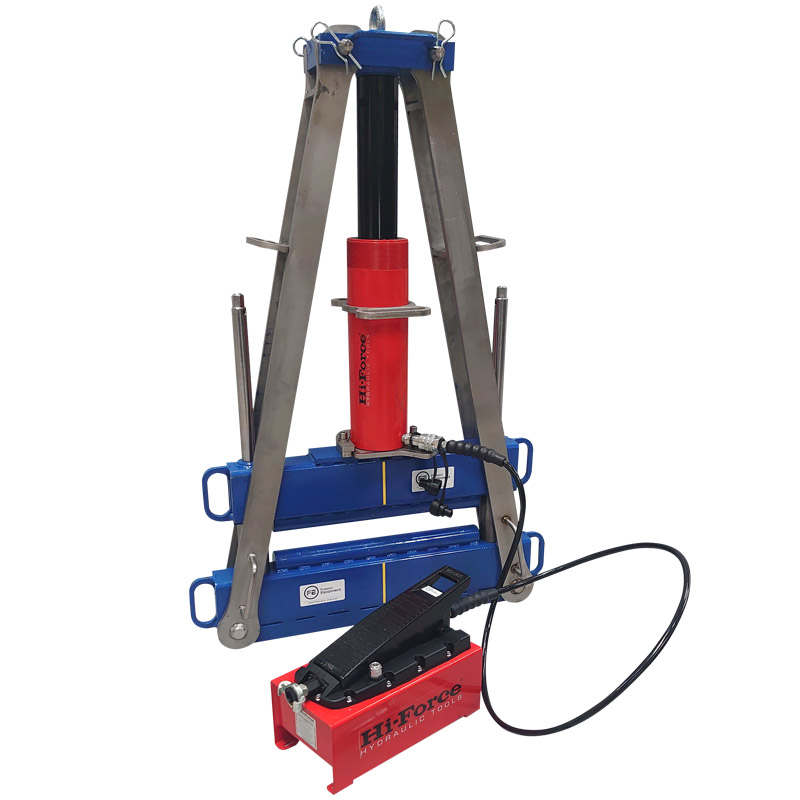

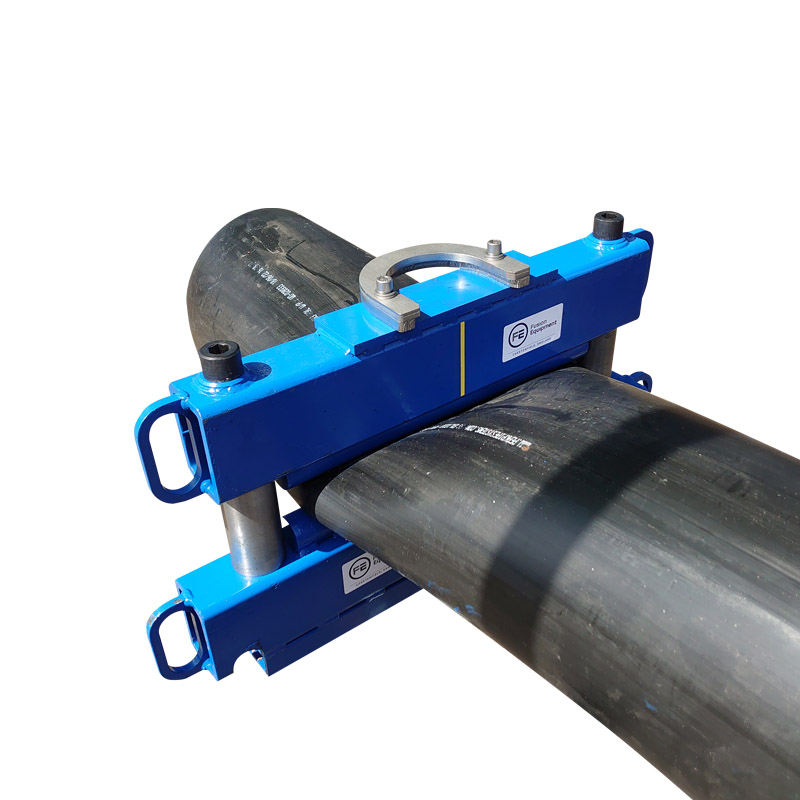

The Hydraulic Squeeze Tool 315mm is an A-Frame style emergency squeeze off tool suitable for PE and HDPE pipes designed for flow control or temporary closure of large size pipes. Hydraulically powered, the single cylinder and frame can be used to make multiple squeeze offs with additional closure bars. Air over hydraulic intensifier unit and spare safety stops are also available for use on a range of pipe sizes and prevent permanent pipe damage.
Features
- Pipe range 220-315mm Ø / SDR range 11-26
- Compact tool with fold away and detachable legs
- The modular designed tool separates into easy to handle parts
- Three operating options available:

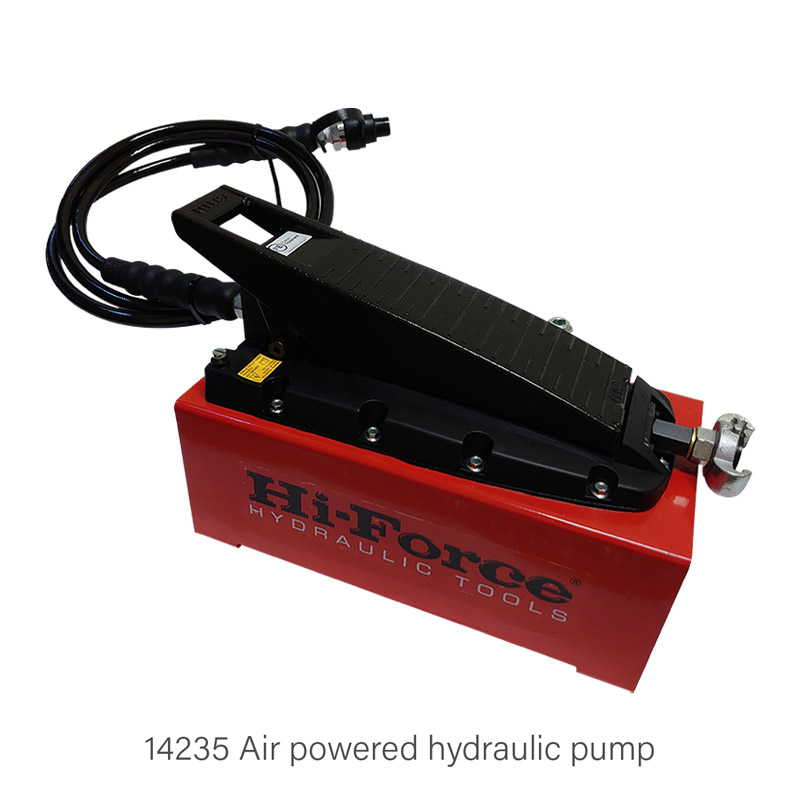

• Two stage air driven hydraulic pump

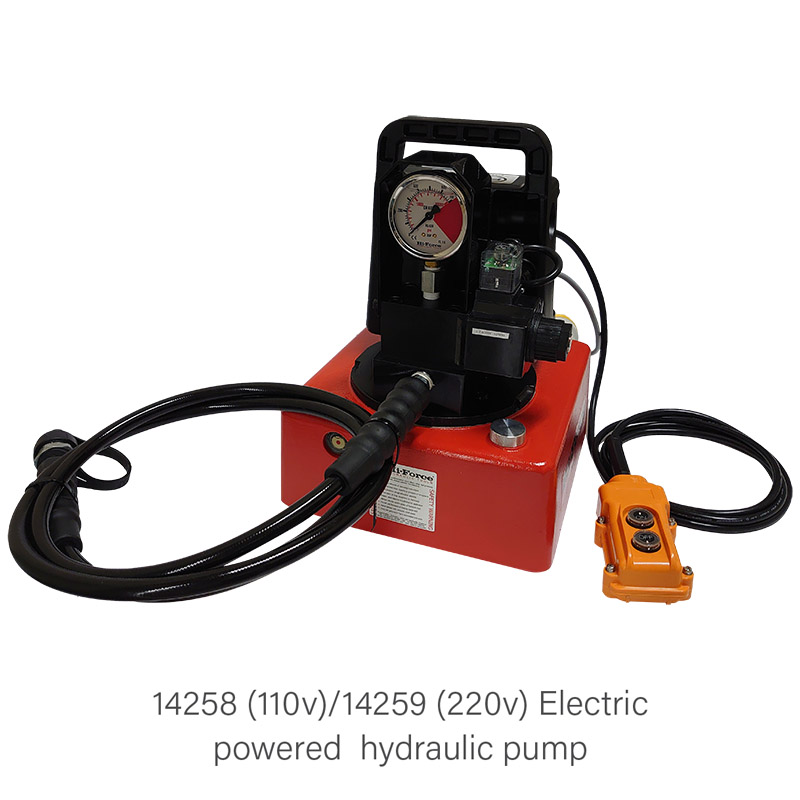

• Electric powered hydraulic pump

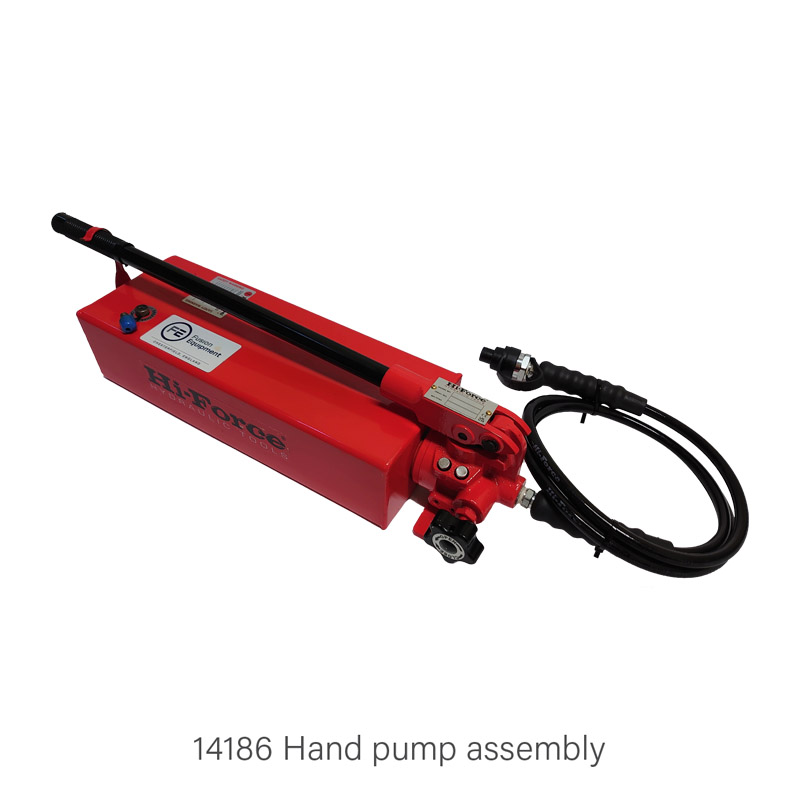

• Hydraulic hand pump - Tough nitrocarburized cylinder piston rod
- Quick release hydraulic connection
- Lifting eye and handles
- Simple economical stops
